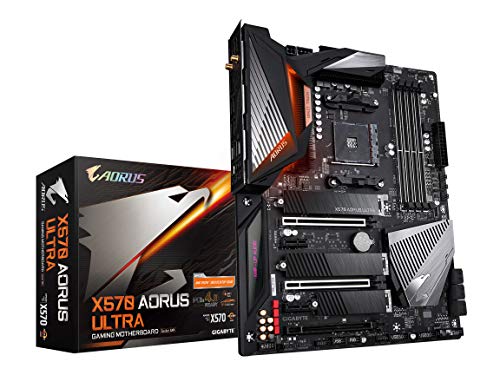

Gigabyte X570 Aorus Ultra

Add your review

Gigabyte’s Aorus lineup consists of six different motherboards based on the AMD X570 chipset. The X570 Aorus Ultra is situated below the Aorus Master and above the Aorus Pro models in terms of features and pricing. It includes a mix of features from both, sharing VRM with the lower-end board and fast Ethernet plus additional storage slots from the higher-end model.

X570 Aorus Ultra: Key Features

The AMD X570 was launched in 2019 at the same time as the Ryzen 3000-series processors. Due to the introduction of the PCI Express (PCIe) v 4.0 interface, the platform is rather demanding and most motherboards tend to be equipped with active cooling. Gigabyte’s X570 Aorus Ultra is no exception. The Ultra is a high-end motherboard that takes full advantage of PCIe 4.0 by including three M.2 slots that support the interface. M.2 SSD heatsinks for all three slots are included.

While some of the high-end features are shared with the more expensive X570 Master, the VRM appears to be identical to the one used with the more affordable Pro model. The 14-phase digital PowIRstage (12+2) is nevertheless a comparatively high-end offering that should be able to deliver clean power to every CPU in the 3rd-gen Ryzen lineup up to the 3900X and beyond. The motherboard also supports 2nd-generation Ryzen CPUs.

Unlike the more affordable variations of AMD X570 motherboards, the Aorus Ultra comes with onboard Wi-Fi 6/802.11ax as well as dual LAN controllers: One Intel Gigabit controller and one Realtek 2.5 Gbit/s. Like all other X570 motherboards at launch, the Ultra has four RAM slots that will hold up to 128 GB (4x 32 GB modules) of DDR4 RAM (dual-channel). RAM speeds of up to 4400 MHz are supported (in overclocked mode).

To simplify for PC builder, the I/O shield is pre-mounted. There are also support for multi-zone addressable RGB LED lighting using Gigabyte’s RGB Fusion 2.0 solution.  Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips

Comparison of Aorus X570 Motherboards

ProductAorus X570 XtremeAorus X570 MasterAorus X570 UltraAorus X570 ProAorus X570 Elite
Form FactorE-ATXATXATXATXATX
Power DeliveryDirect 16 Phases
Infineon Digital VRM
w/ 70A Power Stage
Direct 14 Phases
Infineon Digital VRM
w/ PowIRstage
12+2 Phases IR Digital VRM
w/ PowIRstage
12+2 Phases IR Digital VRM
w/ PowIRstage
12+2 Phases Digital VRM Solution
w/ DrMOS
CPU Support2nd/3rd-gen AMD Ryzen2nd/3rd-gen AMD Ryzen2nd/3rd-gen AMD Ryzen2nd/3rd-gen AMD Ryzen2nd/3rd-gen AMD Ryzen
RAM Support (up to)4400 MHz (OC)4400 MHz (OC)4400 MHz (OC)4400 MHz (OC)4000 MHz (OC)
Memory Slots/Channels (Max.)4/2 (128 GB)4/2 (128 GB)4/2 (128 GB)4/2 (128 GB)4/2 (128 GB)
PCIe X16 Slots33332
PCI-E 4.0 X1 Slots01222
SATA III Ports66666
M.2 Slots3x PCIe 4.03x PCIe 4.03x PCIe 4.02x PCIe 4.02x PCIe 4.0
RAID Support0/1/100/1/100/1/100/1/100/1/10
LAN1x Aquantia 10GbEa
1x Intel Gigabit LAN
1 x Realtek 2.5GbE
1x Intel Gigabit LAN
1 x Realtek 2.5GbE
1x Intel Gigabit LAN
1x Intel Gigabit LAN1x Intel Gigabit LAN
USB Ports2x (Gen2, Type C),
5x (Gen2, Type A),
6x (Gen1, Type A),
6x USB 2.0/1.1
2x (Gen2, Type C),
3x (Gen2, Type A),
6x (Gen1, Type A),
8x USB 2.0/1.1
2x (Gen2, Type C),
2x (Gen2, Type A),
7x (Gen1, Type A),
8x USB 2.0/1.1
2x (Gen2, Type C),
2x (Gen2, Type A),
5x (Gen1, Type A),
8x USB 2.0/1.1
1x (Gen2, Type C),
2x (Gen2, Type A),
8x (Gen1, Type A),
8x USB 2.0/1.1
SLI/CrossfireY/YY/YY/YY/YN/Y
AudioRealtek ALC1220-VB,
2/4/5.1/7.1-channel,
support for S/PDIF Out
Realtek ALC1220-VB,
2/4/5.1/7.1-channel,
support for S/PDIF Out
Realtek ALC1220-VB,
2/4/5.1/7.1-channel,
support for S/PDIF Out
Realtek ALC1220-VB,
2/4/5.1/7.1-channel,
support for S/PDIF Out
Realtek ALC1200,
2/4/5.1/7.1-channel,
support for S/PDIF Out

The Aorus X570 Xtreme is the flagship model in the lineup, while the Elite is the entry-level model. All models in-between share various features depending on the price range. Since AMD’s X570 can be considered a high-end platform in itself, there are no particularly budget-minded alternatives in the lineup.

Reviews

Techtesters.eu (dutch):

The Aorus Ultra has an extremely good power supply and a well-balanced feature set. As for headers and the like, Gigabyte does not make the mistake ASRock made with the Taichi by removing a second USB 3.0 header, nor does MSI make the mistake of pinching the number of USB ports on the back. This is objectively a good and well-balanced board.

Specification: Gigabyte X570 Aorus Ultra

EAN List EAN List Element: 0889523017852
Item Dimensions Height: 314, Length: 1358, Weight: 300, Width: 1157
Model MB-234146
Package Dimensions Height: 320, Length: 1380, Weight: 380, Width: 1160
Title GIGABYTE X570 AORUS Ultra (AMD Ryzen 3000/X570/ATX/PCIe4.0/DDR4/USB3.1/Realtek ALC1220-Vb/Fins-Array Heatsink/RGB Fusion 2.0/3xM.2 Thermal Guard/Gaming Motherboard)
UPC List UPC List Element: 889523017852
Warranty 3
Release Year 2019
