Low End PC Performance Guide: Battlefield 3

Gaming PC Builder is reader-supported. When using links on our site to make a purchase, we may earn an affiliate commission.

Built on DICE’s Frostbite 2 engine, the updated version of Frostbite used in Battlefield: Bad Company 2, Battlefield 3 is no doubt is the best looking game in the Battlefield series. The game looks so good it was nominated in every feature for “best graphics in 2011”. It was also so demanding that the developer DICE even stated that it would require an SLI/Crossfire dual-GPU set up to run the game at Ultra settings. But how does it scale to lower-end systems? Unfortunately, we haven’t seen one article to have tested and discussed this.

TEST SYSTEM & REQUIREMENTS

 TEST SYSTEMMINIMUM REQUIREMENTS
ProcessorAMD Athlon 64 X2 5000+ 2.6GHz Dual-coreCore 2 Duo 2.4 GHz or Athlon X2 2.7 GHz
Memory3GB DDR2- 800MHz2GB
Video CardnVidia GeForce 9600GT 512MB DDR3(Green Edition)nVidia GeForce 8800 GT 512MB or AMD ATI Radeon 3870 512MB
Driver / Patch versionnVidia Forceware 285.62No installed updates.
Operating System / DirectXWindows 7 SP1 64-bit / DX 11Windows Vista (SP2) 32-bit / DX 10.0

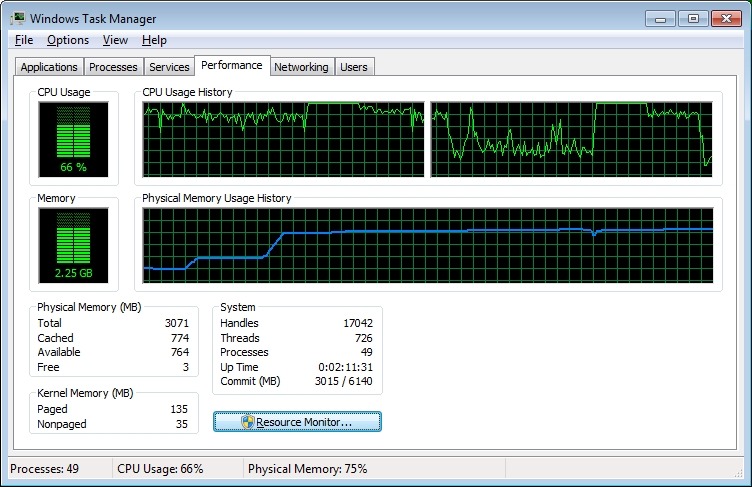

CPU Usage

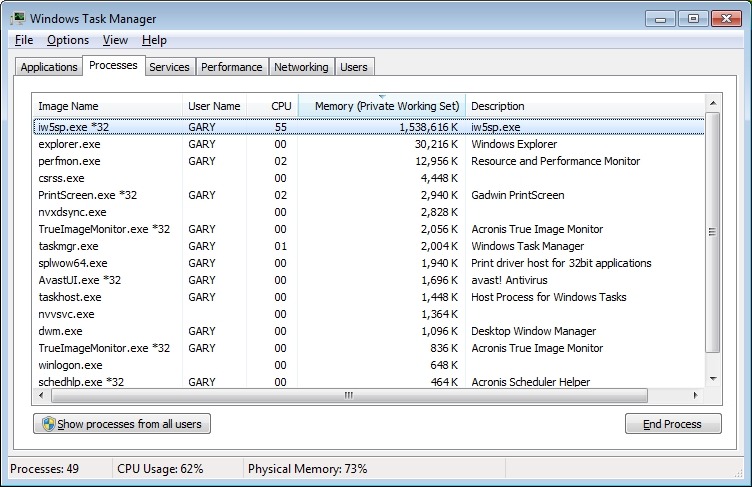

Memory Usage

Battlefield 3’s minimum requirements looks favorable, on paper, and  it looks to be identical to our system so we are really curious on how the game would run on these kinds of systems. Take note for those who have AMD Radeon cards, the game only requires DirectX 10, not necessarily DirectX 10.1 like Radeon 3870.

This game gives a great deal of beating for the CPU, running almost 100% all the time. Meanwhile, it looks to be light on memory, using only 1GB.

IMAGE COMPARISON

Texture

Texture - Low
Texture - Medium
Texture - High
Texture - Ultra

Anisotropic Filtering

AF - 1x
AF - 4x
AF - 8x
AF - 16x

Shadows

Shadows - Low
Shadows - Medium
Shadows - High
Shadows - Ultra

Ambient Occlusion

Occlusion - Off
Occlusion - SSAO
Occlusion - HBAO

Effects Quality

Effects - Low
Effects - Medium
Effects - High
Effects - Ultra

Mesh Quality

Mesh - High
Mesh - Low
Mesh - Medium
Mesh - Ultra

Terrain Quality and Decoration

Terrain Decoration - Low
Terrain Decoration - Medium
Terrain Decoration - High
Terrain Decoration - Ultra
Terrain Quality - Low
Terrain Quality - Medium

Anti-aliasing

Post - Off, Defer - Off
Post - Off, Defer - 2x
Post - Off, Defer - 4x
Post - Low, Defer - Off
Post - Medium, Defer - Off
Post - High, Defer - Off
Post - High, Defer - 4x

Motion Blur

Blur - Off
Blur - 25
Blur - 50
Blur - 100

Preset Quality

Preset - Low
Preset - Medium
Preset - High
Preset - Ultra
 LOWMEDIUMHIGHULTRA
Texture QualityLowMediumHighUltra
Shadow QualityLowMediumHighUltra
Effects QualityLowMediumHighUltra
Mesh QualityLowMediumHighUltra
Terrain QualityLowMediumLowLow
Terrain DecorationLowMediumHighUltra
Anti-aliasing DeferredOffOffOff4xMSAA
Anti-aliasing PostOffMediumHighHigh
Motion BlurOffOffOnOn
Anisotropic Filtering2x (Custom 1x)4x16x16x
Ambient OcclusionOffSSAOHBAOHBAO

The above table is the comparison graphical preset settings. We used only 1x for the Anisotropic Filtering, instead of 2x in Low preset to set everything in its lowest level. This setting is what we used for image comparison and in benchmarking. Also take a look on Terrain Quality where it is set to low on High and Ultra Preset, it is because a DirectX 11 video card is needed to turn it to high and ultra, and we are only using Direct X 10 video card.As we took our time taking screenshots, we noticed that a particular setting, Mesh Quality for example, doesn’t make any visual changes in some areas.

Mesh - Low
Mesh - Medium
Mesh - High
Mesh - Ultra

PERFORMANCE

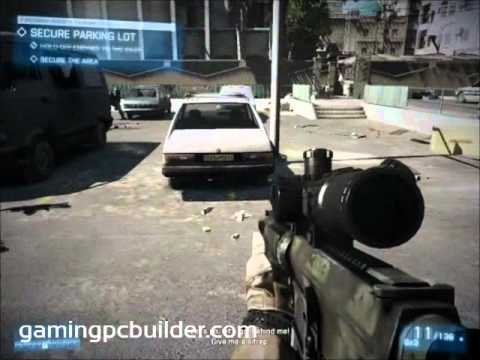

For our benchmarking process, we used FRAPS to measure the frames per second from the “Operation Shadowbreaker” mission. The video below is the benchmarking sequence we used.



bf3bench1024

bf3bench1024line

We didn’t bother benchmarking at Ultra preset as the results were already too low at High preset. We also didn’t have a DirectX 11 capable card to set everything at Ultra.

At 1280×1024 resolution, the results are too low and slow to be playable. Actually, in all of the line graphs, almost all frames were below 30. The fastest was at Low preset at 1024×768 with 27 fps average. There are some people who can tolerate this, and we gave this a shot to be more playable by tweaking and overclocking.

TWEAKING AND OVERCLOCKING

The game’s configuration file can be found in “My Documents\Battlefield 3\settings” and open the file “PROF_SAVE_profile” with WordPad. We apply the following settings:

GstRender.AmbientOcclusion 0
GstRender.AnisotropicFilter 0
GstRender.AntiAliasingDeferred 0
GstRender.AntiAliasingPost 0
GstRender.Brightness 0.500000
GstRender.Contrast 0.500000
GstRender.EffectsQuality 0
GstRender.Enlighten 0
GstRender.FieldOfView 10.000000
GstRender.FullscreenEnabled 1
GstRender.FullscreenScreen 0
GstRender.MeshQuality 0
GstRender.MeshQualityOld 0.700000
GstRender.MotionBlur 0.500000
GstRender.MotionBlurEnabled 0
GstRender.OverallGraphicsQuality 5
GstRender.ResolutionHeight 768
GstRender.ResolutionHertz 1114637337
GstRender.ResolutionWidth 1024
GstRender.ScreenSafeAreaHeight 0.950000
GstRender.ScreenSafeAreaWidth 0.950000
GstRender.ShaderQuality 2.000000
GstRender.ShadowQuality 0
GstRender.StereoConvergence 1.000000
GstRender.Stereoscopy 0
GstRender.TerrainQuality 0
GstRender.TextureQuality 0
GstRender.TransparentShadows 0
GstRender.UndergrowthQuality 0
GstRender.VSync 0
You can also type the following in notepad and save it as “User.cfg” and copy it to the Battlefield 3 game folder. These commands will be loaded automatically when a level is loaded. The commands can also be entered in game console (`).

RenderDevice.ForceRenderAheadLimit 8
RenderDevice.TripleBufferingEnable 0
GameTime.MaxVariableFps 90

We also managed the 3D settings of Battlefield 3 in NVIDIA Control Panel.

Nvidia Settings 1

Nvidia Settings 1

Nvidia Settings 2

Nvidia Settings 2



As for overclocking, we overclocked both the GPU and the CPU to juice more frames out of these components. As mentioned earlier, the video is a Green Edition of 9600GT which basically a downclocked version of the original 9600GT and it doesn’t need 6-pin power connector.

Overclocked CPU

Overclocked GPU

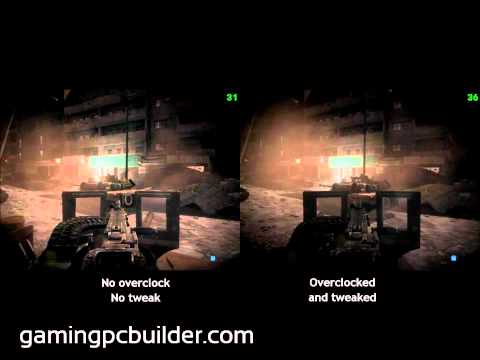

With the combination of tweaking and overclocking, we gained 9 fps on the average and 6 fps on the minimum. Looking at the line graph, the performance gain is evident – most of the frames per second are above 30 – compared to the stock performance. The game is now completely playable, at least at 1024×768. Playing it at a higher resolution or preset quality will negate these improvements. You can also do this on midrange or high-end systems to get more frames and make the gameplay smoother.

SUMMARY

Although Battlefield 3 will technically run on its minimum requirements, it’s slow and frustrating – especially when you are playing online. This is a fast-paced shooting game and you don’t wanna play this anywhere below 30fps. Lucky for you if you know how to overclock and get around with configuration files; these will definitely give a boost in performance. But ultimately, the minimum requirement is practically invalid and you will definitely need upgrades or buy a new system if your current system is identical to the minimum requirements.
