Adata Legend 800 2TB Review: Outstanding Value

7.5Expert Score
Great entry-level Gen4 SSD

The 2TB Legend 800 is priced on par with mainstream SATA SSDs but has a lot more to offer.

  • Excellent value
  • Solid real-world performance
  • Good endurance ratings
  • Incomplete spec sheet
  • No 4TB model

Adata Legend 800 2TB SSD box

The Adata Legend 800 is one of the cheapest M.2 SSDs in the market in late 2023. It utilizes a PCIe Gen4 x4 interface, yet its sequential read performance largely aligns with the fastest Gen3 SSDs. As you would expect at this price point, there is no onboard DRAM buffer, and it uses the entry-level Silicon Motion SM2267 controller with four NAND channels.

This is all well and good considering that the 2TB Legend 800 is no more expensive than an average SATA SSD at the same capacity – but still several times faster. In other words, it might be a good fit for a budget gaming build, a laptop, or as secondary storage.

What I intend to find out in this review is what the trade-offs look like and how the drive compares to other budget-oriented M.2 SSDs like the Kingston NV2, among others.

Drive Details & Specifications

Adata Legend 800
Form FactorM.2 2280M.2 2280M.2 2280
Interface / ProtocolPCIe 4.0 x4 / NVMe 1.4PCIe 4.0 x4 / NVMe 1.4PCIe 4.0 x4 / NVMe 1.4
ControllerSiliconMotion SM2267SiliconMotion SM2267SiliconMotion SM2267
Sequential Read3,500 MB/s3,500 MB/s3,500 MB/s
Sequential Write2,200 MB/s2,200 MB/s2,800 MB/s
Random ReadN/AN/AN/A
Random WriteN/AN/AN/A
Endurance300 TBW600 TBW1,200 TBW
Warranty3 Years3 Years3 Years

Some details are notably absent from the official spec sheet for Adata’s Legend 800. This is unfortunately quite common in the budget space, as it leaves room for the manufacturer to make changes down the line provided that the drive conforms to the original specs. The NAND is listed as ‘3D NAND’, which doesn’t say much, but considering the high endurance ratings it is likely to be some variation of TLC (triple-level cell) NAND.

Random performance for the different capacities is also omitted. However, according to the SiliconMotion spec sheet, it should be capable of 500K IOPS using HMB (host memory buffer). HMB essentially means that it uses part of the system RAM instead of an onboard cache to enhance performance. This is a cheaper and typically slower alternative, but drives like the WD Black SN770 and Addlink S90 Lite have proven that going DRAM-less can be fast enough.

Adata Legend 800 unboxing

Unboxing the SSD reveals that Adata ships the Legend 800 without the heat spreader attached. This is a reasonable alternative to the rather common nuisance of turning it into a ‘warranty void if removed’ sticker. Attaching the heat spreader is nevertheless a good idea in most cases as it is thin enough not to cause fitting issues.

Adata Legend 800 - SiliconMotion controller closeupZooming in on the SiliconMotion controller, you may note that it’s labeled SM2267G. Since there is no DRAM on the PCB, it is likely a variant of the SM2267XT, which is a version of the chip designed for HMB/DRAM-less operation. You will also find this chip on other affordable NVMe SSDs like the Kingston NV2 (at least the 2TB version – neither Kingston nor Adata are clear on the details).

This is a mainstream chip featuring four NAND flash channels at up to 1,200 MT/s per channel. It is compatible with all sorts of 3D NAND and this choice may also affect performance.

Adata Legend 800 Benchmarks

Sequential and Random Performance

Adata Legend 800 AS SSD sequential performance chart

Sequential performance in AS SSD hints at the Adata Legend 800 not being identical to the similarly-specced Kingston NV2. Read speeds are slightly higher for the NV2, whereas the opposite applies to write speeds.

Adata Legend 800 CrystalDiskMark sequential performance chart

In CrystalDiskMark, which typically lets SSDs get closer to their maximum transfer rates, the 2TB Legend 800 actually exceeds its listed 3,500 MB/s and 2,800 MB/s sequential performance ratings. This also means that it exceeds the limitations of the PCIe Gen3 x4 interface, which is obviously a hard limit for Gen3 drives like the FireCuda 510.

Adata Legend 800 CrystalDiskMark random performance chart

Random performance at minimal queue depth is even more impressive compared to other entry-level M.2 SSDs. The Legend 800 comes in just behind Western Digital’s mid-range SN770.

Response Times/Latency (Anvil’s Storage Utilities)

Adata Legend 800 latency chart

Much like random performance, response times tend to be quite good at predicting general, everyday performance. Adata’s budget SSD is again a bit snappier than the NV2 but still slower than the (also DRAM-less) SN770 and Addlink S90 Lite.

Real-World Performance (FF IIV, PCMark, 3DMark)

Adata Legend 800 FF14 load times chart

The standalone FF XIV: Shadowbringer benchmark measures the loading times of five different levels down to the millisecond, enabling detailed storage performance comparisons. Unsurprisingly, the high-end 990 PRO and WD Black SN850X top the chart, but the Adata Legend 800 is not among the slowest drives.

Adata Legend 800 app start-up chart

Start-up times for a number of common apps in PCMark 10 are also impressive with the inexpensive Legend 800. You would not be able to tell the difference between any of the Gen4 SSDs here.

Adata Legend 800 3DMark storage benchmark chart

3DMark is all about gaming performance and the built-in storage benchmark is no different. It includes installing, moving, loading, recording, and saving a range of popular games like Overwatch and Battlefield. The Legend 800 falls behind the pricier SSDs here in terms of average bandwidth but is still ahead of the Kingston NV2 and Micron 2450.

Conclusion: Outstanding value in the entry-level space

Adata Legend 800

You wouldn’t come away amazed from looking at the specs of Adata’s Legend 800. It’s clearly a budget Gen4 SSD with specs that may just as well have referred to a Gen3 drive.

At the time of writing, however, you can find the 2TB model of this drive for less than $80. That price tag puts it on par with mainstream SATA SSDs, which are all substantially slower in every measurable area. Interestingly, it is also cheaper than the similarly-equipped Kingston NV2 although it outperforms this drive in most benchmarks. It also compares favorably to the Micron 2450, an OEM drive commonly found in mainstream or high-end laptops.

There are of course other SSDs that are much better suited for a high-end (or even mid-range) gaming PC. But for entry-level builds, laptops, or DIY external SSDs, the Legend 800 offers formidable value.


Jesper Berg
Jesper Berg

I got started with PC building in the 3dfx Voodoo era somewhere back in the 1990s, and have been writing for tech publications for a bit more than a decade. In other words old enough to have lost count of the times PC gaming has been pronounced dead.

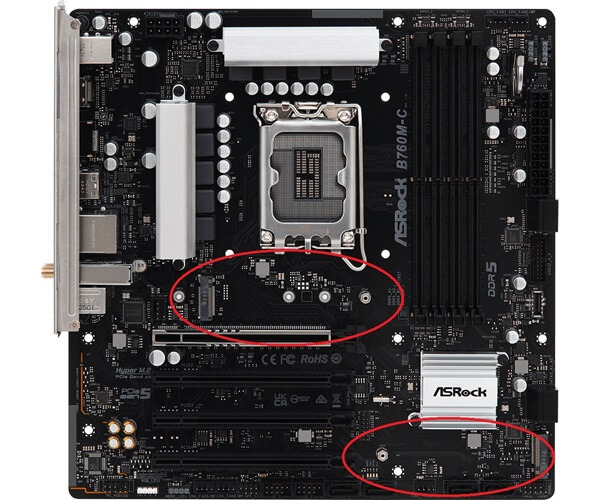

  1. does the asrock b760m-c have an additional gen4 nvme m.2 slot, im so pc iliterate, im want ting to add a 4tb internal and was told i have the sopt on this prebuilts mb to do so but looking at the asrock picture i only see the one and it has my adata 800 2tb in it. im wanting to add a 4tb but not sure if i can now and im looking at the wd 850x or crucial has a 4tb gen 4 for 237dollars. dont know if i need heat sink either. if i sent this message twice im sorry i just do not see it posted.

  2. i just purchased a prebuilt i5 13400f, 32gb ddr5 teamgroup vulcan red, 2tb gen4 nvme adata legend 800 gold, mb asrock b760m-c, gpu 4060 8gb[the most hated lol] for 950 bucks and am quite happy, should i have the adata 800 legend gold replaced with better \faster m.2 is my question. im very new to pc and pc hardware

    • Hi Mike! Sounds like a very well-rounded build and if you are happy with it I wouldn’t change a thing. The Legend 800 is still faster than top Gen3 drives and in most cases, you are unlikely to notice much difference in everyday tasks compared to pricier Gen4 options. It might be a bit more noticeable once DirectStorage is implemented in most new games, but that will probably take years.

      Also, my possibly controversial opinion is that the 4060 8GB is a great card 🙂 It mainly has a pricing problem, but that is unfortunately the case with most cards this generation…

      • i never thanked you for your reply, so here is a very late Thanks. im looking now to adding another nvme m.2 and wanting to install a 4tb. 300 buck i figure price range give or take is fine, curious if you would recomend any. its pretty much for games since my adata i dont use much except for my operating sustem. it is still 1.25 tb free but my external 2tb is stuffed and since i have another internal slot for nvme m.2 i think id like to install a 4tb and ive been told its not difficult. im just not sure which to get and do i need heat sink with it etc? my mb is asrock b760m-c and any help of which and what to get would be appreciated highly. again sorry for the delayed thanks, thank you Jesper!
