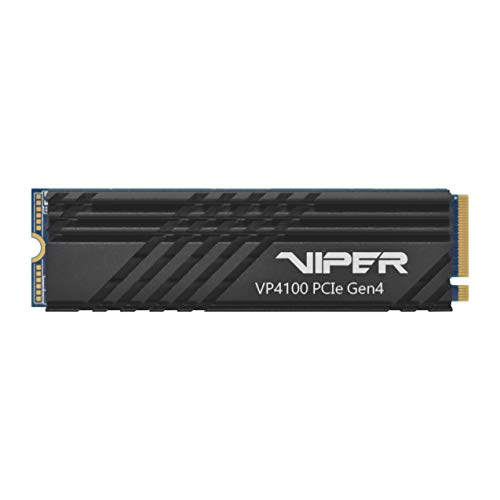

Patriot Viper VP4100 Gen 4 SSD

Add your review

Phison E16 Series Controller 2280 M.2 PCIe Gen4 x 4, NVMe 1.3 DRAM Cache: 2GB External Thermal sensor Low profile heatshield design Advanced Wear Leveling Operating Temperature: 0 – 70 Degree Celsius TBW: 3600TB

Patriot Viper VP4100 Gen 4 SSD
Patriot Viper VP4100 Gen 4 SSD


Patriot’s Viper VP4100 was launched a few months after the Gigabyte Aorus Gen4, Corsair MP600, and Sabrent’s Rocket Gen 4, but it has a lot in common with these drives. The key feature is support for the PCI Express 4.0 interface, which became available to consumers along with AMD’s 3rd-gen Ryzen and Threadripper platforms. At this point (late 2019), only these platforms will allow the Viper VP4100 and other Gen 4 SSDs to run at maximum speed.

Overview: Memory Type, Controller, and Cache

Although it was launched later than its main competitors in the M.2 category, the Patriot Viper VP4100 uses the exact same base parts. That includes the now ubiquitous Phison E16 controller along with 96-layer triple-level cell (TLC) NAND memory from Toshiba. Likewise, all are equipped with a DDR4 DRAM buffer and an ultra-fast SLC-mode cache, which is a must in combination with comparatively slow TLC memory modules.

Patriot Viper VP4100 Vs. Other Phison E16 SSDs

Phison E16 PCIe 4.0 SSD ComparisonGigabyte Aorus Gen4
Sabrent Rocket Gen4
Corsair Force MP600
Patriot Viper VP4100
1 TB
ControllerPhison E16Phison E16Phison E16Phison E16
Form Factor (Interface)M.2 2280 (PCIe 4.0 x4 NVMe 1.3)M.2 2280 (PCIe 4.0 x4 NVMe 1.3)M.2 2280 (PCIe 4.0 x4 NVMe 1.3)M.2 2280 (PCIe 4.0 x4 NVMe 1.3)
NAND Flash typeToshiba 96-layer 3D TLCToshiba 96-layer 3D TLCToshiba 96-layer 3D TLCToshiba 96-layer 3D TLC
Random Read750K IOPS750K IOPS680K IOPS800K IOPS
Random Write700K IOPS750K IOPS600K IOPS800K IOPS
Sequential Read (max)5,000 MB/s5,000 MB/s4,950 MB/s5,000 MB/s
Sequential Write (max)4,400 MB/s4,400 MB/s4,250 MB/s4,400 MB/s
Write Endurance1,800 TBW1,800 TBW1,800 TBW1,800 TBW
Warranty5 years5 years5 years5 years

For the Phison E16-based SSDs to reach their maximum transfer rates, a PCI Express 4.0-compatible platform is required. As of late 2019, the only platforms available to consumers that support PCIe 4.0 is AMD’s X570 and TRX40 – and only in combination with the latest AMD chips.

However, when the additional performance headroom is available, no competing M.2 SSDs from 2019 can reach the same maximum performance as the Patriot Viper VP4100 and other E16-based drives. Although the components are largely identical, the firmware is not, so performance varies slightly between the drives. The Viper’s advertised specs closely resemble Sabrent’s and Gigabyte’s drives but offer somewhat higher peak IOPS performance. In real-world scenarios, the difference should be minimal.

The Viper VP4100 is available in three capacities: 500GB, 1TB, and 2TB, with peak sequential write performance being lower in the 500GB capacity.

Power Consumption (Laptop Suitability)

The Patriot Viper 4100 is equipped with a heatsink, and would not be suitable for laptops. Either way, there are no PCIe 4.0-enabled laptops at the time of writing.

Warranty and Endurance Rating

Like its competitors, the Viper VP4100 comes with excellent endurance (TBW) ratings of 900 TBW (500GB), 1,800 TBW (1TB) and 3,600 TBW (2TB). Patriot offers a 5-year limited warranty with the drive.

Expert Reviews


If you want one of the best storage drives you can get for your new AMD system, then the Viper VP4100 from Patriot is the way to go.

Additional information

Specification: Patriot Viper VP4100 Gen 4 SSD

UPC List UPC List Element: 814914026328
Title Patriot Viper VP4100 1TB m.2 2280 PCIe - High Performance Solid State Drive
Package Quantity 1
Package Dimensions Height: 110, Length: 480, Weight: 11, Width: 303
Model VP4100-1TBM28H
Item Dimensions Height: 28, Length: 87, Weight: 6, Width: 315
EAN List EAN List Element: 0814914026328
EAN 0814914026328
