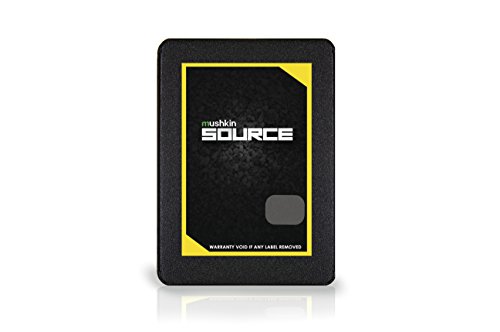

Mushkin Source (2.5″ SATA)

Add your review
Set Lowest Price Alert
×
Notify me, when price drops
Set Alert for Product: Mushkin Source - 500GB Internal Solid State Drive (SSD) - 2.5 Inch - SATA III - 6Gb/s - 3D Vertical TLC - 7mm - (MKNSSDSR500GB) - $56.99
7.5

$56.99

Best deal at: amazon.comAmazon.com
Buy for best price

Meta review: Experts seem to agree that the Mushkin Source offers a good mix of performance and value for light use cases.

Last updated on October 18, 2019 4:23 am

Mushkin Source (2.5″ SATA) Prices

$56.99
October 18, 2019 4:23 am
× Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on Amazon.com (Amazon.in, Amazon.co.uk, Amazon.de, etc) at the time of purchase will apply to the purchase of this product.
3 new from $56.99
out of stock

Price History

-

Description

The Source is Mushkin’s entry in the very competitive entry-level 2.5″ SATA segment. It was released in 2018 and uses affordable triple-level cell (TLC)  3D (vertically stacked) NAND memory chips.

Memory Type, Controller and Cache

As of 2018/2019, all entry-level SSDs use either TLC (triple-level cell) or even more affordable QLC (quad-level cell) NAND Flash memory chips. The Mushkin Source is equipped with 64-layer 3D TLC Flash from Micron, much like the Crucial MX500 among others.

A somewhat less common aspect is that the Source uses a 4-channel Silicon Motion SM2258XT controller that, unlike the non-XT SM2258 used in e.g. the Adata SU900, is intended for a DRAM-less setup.

In other words, there is no DRAM cache buffer in the Mushkin Source, leading to additional cost savings. However, according to the official specs, the Source appears to offer considerably better performance than other DRAM-less SSDs like the ultra-cheap Kingston A400. It does have an SLC-type cache to speed up writes, which means that – like other TLC-based SSDs – write speeds will slow down once the SLC cache is exhausted.

Performance

The Mushkin Source seems to do a good job at saturating the SATA interface, offering similar sequential performance across all capacities. As usual, however, random performance in particular increases with capacity. Available capacities are 120 GB, 250 GB, 500 GB and 1 TB.

 3-Way4-Way
InterfaceNVIDIA SLI TechnologyNVIDIA SLI Technology
SLI Fingers66
DimensionsSLI Bridge: 160(L) x 61(W) x 22(H) mm
Bracket: 124(L) x 153(W) x 13(H) mm
Fan: 120(L) x 120(W) x 15(H) mm
Complete setup: 160(L) x 214(W) x 37(H) mm
SLI Bridge: 160(L) x 61(W) x 22(H) mm
Bracket: 124(L) x 153(W) x 13(H) mm
Fan: 120(L) x 120(W) x 15(H) mm
Complete setup: 160(L) x 214(W) x 37(H) mm
SLI Finger Width1st row to 2nd row: 80 mm
2nd row to 3rd row: 40 mm
40 mm
Weight236 g (Complete setup)236 g (Complete setup)
CompatibilityMSI GeForce GTX 900 series graphics cards:
  - GeForce GTX TITAN X
  - GeForce GTX 980 Ti (Except LIGHTNING)
  - GeForce GTX 980 (All models)
  - GeForce GTX 970 (Reference only)
MSI GeForce GTX 900 series graphics cards:
  - GeForce GTX TITAN X
  - GeForce GTX 980 Ti (Except LIGHTNING)
  - GeForce GTX 980 (All models)
  - GeForce GTX 970 (Reference only)

Power Consumption (Laptop Battery Life)

A power-efficient SSD is an important component in any laptop, occasionally adding or subtracting tens of minutes depending on the workload. According to the specs, the Mushkin Source consumes 2 W when active and 80 mW when idling. But normally, higher capacities use more power than smaller ones. One test of the 500 GB Mushkin Source by TweakTown revealed that it is less efficient than the 860 EVO, MX500 and SanDisk Ultra 3D.

Endurance and Warranty

Memory cells will only last for a finite number of writes. And since wear increases with additional bits per cell, TLC NAND (three bits) will wear down considerably faster than MLC NAND (two bits). This issue can be compensated somewhat using over-provisioning and wear leveling.

Endurance numbers in TBW (terabytes written) for the Mushkin Source are comparatively low, but still on par with similar SSDs:

  • 120GB: 50 TBW
  • 250GB 100 TBW
  • 500GB: 200 TBW
  • 1TB: 400 TBW

Mushkin offers a 3-year warranty with the Source SSD, which is lower than the 5-year industry standard.

Encryption and Other Features

Encryption support is not available in this drive.

Expert Reviews

AnandTech:

For lighter consumer workloads that don’t routinely throw around multi-GB datasets, the DRAMless design of the Mushkin Source is a minor hindrance, not a crippling flaw.

TechPowerup:

The Mushkin Source 500 GB SSD is currently one of the most affordable 500 GB drives on the market due to the company’s choice to skip the DRAM chip, which enables the cost savings required to reach such a price point.

7.5Expert Score
Meta review: Experts seem to agree that the Mushkin Source offers a good mix of performance and value for light use cases.
0
PROS
  • Decent SATA performance
  • Excellent price/performance ratio
CONS
  • No DRAM
  • Only 3-year warranty

Additional information

Specification: Mushkin Source (2.5″ SATA)

EAN List

EAN List Element: 0846651027573

Item Dimensions

Height: 280, Length: 394, Weight: 10, Width: 28

Package Dimensions

Height: 70, Length: 650, Weight: 20, Width: 430

Studio

SYNNEX Corporation, formerly SYNNEX Information Technologies, Inc.

Title

Mushkin Source – 500GB Internal Solid State Drive (SSD) – 2.5 Inch – SATA III – 6Gb/s – 3D Vertical TLC – 7mm – (MKNSSDSR500GB)

UPC List

UPC List Element: 846651027573

Warranty (years)

3
